About this item

• vThis precision-ground bit made of HSS (high-speed steel) enables up to 40?ster drilling rate and up to 50% lower feed pressure than standard-ground HSS drill bits with chisel edges. This bit is designed for drilling holes in alloyed and non-alloyed steel, cast steel, cast iron, sintered iron, malleable cast iron, non-ferrous metals and hard plastics.

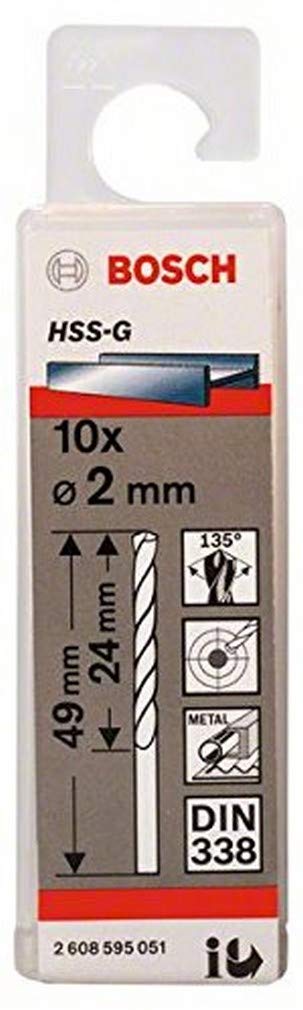

• Diameter (D) mm: 2,00 Working length (L1) mm: 24 Total length (L2) mm: 49 Packaging Content-10


• The drill bit is Type N (flute angle) with a 135-degree tip and a diameter tolerance of h8. It has a cylindrical shank system (shank equal to drill bit diameter) and is intended for use in drill stands and drill drivers.


• The HSS Twist Drill Bit Ground is for drilling through metal with maximum precision. The bit's exposed 135-degree self-centring split-point tip combines active cutting and perfect centring without wandering, delivering maximum precision. The split-point tip also eliminates any need to pre-punch or pilot drill for up to 10 mm. The HSS Twist Drill Bit Ground is manufactured to DIN 338.
